Step by Step Installing Oracle Enterprise Manager 13cR3( 13.3.0.0 ) Cloud Control

CONTENTS

Introduction

This post demonstrates the installation of Oracle Enterprise Manager Cloud Control 13c Release 3 (13.3.0.0) on Oracle Linux  7 (x86_64).

Subscribe to get access

Read more of this content when you subscribe today.

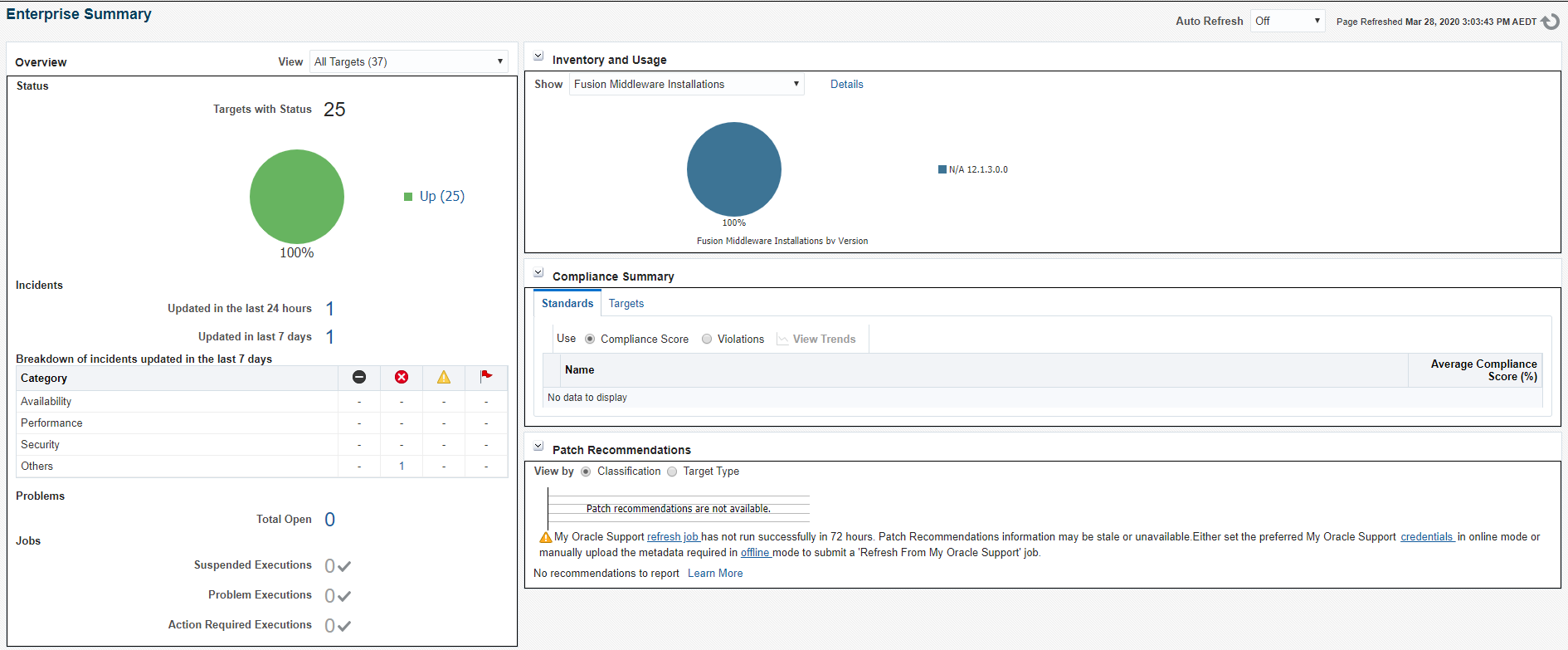

Access Enterprise Manager Cloud Control 13c

URL :            https://oemnode1:7803/em
username:  sysman
Password:   you specified during your installation

Capture
Capture

Check OMS and Local Agent Status

Local Agent Status

[oracle@oemnode1 scripts]$ . oraenv
ORACLE_SID = [OEMREP] ? AGENT

[oracle@oemnode1 scripts]$ emctl status agent
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
Agent Version : 13.3.0.0.0
OMS Version : 13.3.0.0.0
Protocol Version : 12.1.0.1.0
Agent Home : /u01/app/oracle/Product/Agent/agent_inst
Agent Log Directory : /u01/app/oracle/Product/Agent/agent_inst/sysman/log
Agent Binaries : /u01/app/oracle/Product/Agent/agent_13.3.0.0.0
Core JAR Location : /u01/app/oracle/Product/Agent/agent_13.3.0.0.0/jlib
Agent Process ID : 6463
Parent Process ID : 6403
Agent URL : https://oemnode1:3872/emd/main/
Local Agent URL in NAT : https://oemnode1:3872/emd/main/
Repository URL : https://oemnode1:4903/empbs/upload
Started at : 2020-03-27 23:43:12
Started by user : oracle
Operating System : Linux version 4.14.35-1902.10.7.el7uek.x86_64 (amd64)
Number of Targets : 33
Last Reload : (none)
Last successful upload : 2020-03-28 00:14:07
Last attempted upload : 2020-03-28 00:14:07
Total Megabytes of XML files uploaded so far : 1.72
Number of XML files pending upload : 0
Size of XML files pending upload(MB) : 0
Available disk space on upload filesystem : 13.15%
Collection Status : Collections enabled
Heartbeat Status : Ok
Last attempted heartbeat to OMS : 2020-03-28 00:13:52
Last successful heartbeat to OMS : 2020-03-28 00:13:52
Next scheduled heartbeat to OMS : 2020-03-28 00:14:52

Agent is Running and Ready

OMS & BI Publisher status

[oracle@oemnode1 ~]$ . oraenv
ORACLE_SID = [OMS] ? OMS

[oracle@oemnode1 ~]$ emctl status oms -bip_only
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
BI Publisher Server is Up

[oracle@oemnode1 ~]$ emctl status oms -details
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
Enter Enterprise Manager Root (SYSMAN) Password :
Console Server Host : oemnode1
HTTP Console Port : 7788
HTTPS Console Port : 7803
HTTP Upload Port : 4889
HTTPS Upload Port : 4903
EM Instance Home : /u01/app/oracle/Product/gc_inst/em/EMGC_OMS1
OMS Log Directory Location : /u01/app/oracle/Product/gc_inst/em/EMGC_OMS1/sysman/log
OMS is not configured with SLB or virtual hostname
Agent Upload is locked.
OMS Console is locked.
Active CA ID: 1
Console URL: https://oemnode1:7803/em
Upload URL: https://oemnode1:4903/empbs/upload

WLS Domain Information
Domain Name : GCDomain
Admin Server Host : oemnode1
Admin Server HTTPS Port: 7102
Admin Server is RUNNING

Oracle Management Server Information
Managed Server Instance Name: EMGC_OMS1
Oracle Management Server Instance Host: oemnode1
WebTier is Up
Oracle Management Server is Up
JVMD Engine is Up

BI Publisher Server Information
BI Publisher Managed Server Name: BIP
BI Publisher Server is Up

BI Publisher HTTP Managed Server Port : 9701
BI Publisher HTTPS Managed Server Port : 9803
BI Publisher HTTP OHS Port : 9788
BI Publisher HTTPS OHS Port : 9851
BI Publisher is locked.
BI Publisher Server named 'BIP' running at URL: https://oemnode1:9851/xmlpserver/servlet/home
BI Publisher Server Logs: /u01/app/oracle/Product/gc_inst/user_projects/domains/GCDomain/servers/BIP/logs/
BI Publisher Log : /u01/app/oracle/Product/gc_inst/user_projects/domains/GCDomain/servers/BIP/logs/bipublisher/bipublisher.log
[oracle@oemnode1 ~]$

Most Used Commands for OMS and Agent

Stop only OMS & JVMD Engine

[oracle@oemnode1 ~]$ emctl stop oms
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation.  All rights reserved.
Stopping Oracle Management Server...
Oracle Management Server Successfully Stopped
Oracle Management Server is Down
JVMD Engine is Down

[oracle@oemnode1 ~]$ emctl status oms
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation.  All rights reserved.
WebTier is Up
Oracle Management Server is Down
JVMD Engine is Down
BI Publisher Server is Up
[oracle@oemnode1 ~]$

Stop OMS including Administration Server, BI Publisher,HTTP Server and Node Manager

[oracle@oemnode1 ~]$ emctl stop oms -all
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation.  All rights reserved.
Stopping Oracle Management Server...
WebTier Successfully Stopped
Oracle Management Server Successfully Stopped
Oracle Management Server is Down
JVMD Engine is Down
Stopping BI Publisher Server...
BI Publisher Server Successfully Stopped
AdminServer Successfully Stopped
BI Publisher Server is Down
[oracle@oemnode1 ~]$

Check the status of OMS

[oracle@oemnode1 ~]$ emctl status oms
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
WebTier is Up
Oracle Management Server is Up
JVMD Engine is Up
BI Publisher Server is Up
[oracle@oemnode1 ~]$

Get detailed OMS status,  SYSMAN Password is required

[oracle@oemnode1 ~]$ emctl status oms -details
Oracle Enterprise Manager Cloud Control 13c Release 3
Copyright (c) 1996, 2018 Oracle Corporation. All rights reserved.
Enter Enterprise Manager Root (SYSMAN) Password :
Console Server Host : oemnode1
HTTP Console Port : 7788
HTTPS Console Port : 7803
HTTP Upload Port : 4889
HTTPS Upload Port : 4903
EM Instance Home : /u01/app/oracle/Product/gc_inst/em/EMGC_OMS1
OMS Log Directory Location : /u01/app/oracle/Product/gc_inst/em/EMGC_OMS1/sysman/log
OMS is not configured with SLB or virtual hostname
Agent Upload is locked.
OMS Console is locked.
Active CA ID: 1
Console URL: https://oemnode1:7803/em
Upload URL: https://oemnode1:4903/empbs/upload

WLS Domain Information
Domain Name : GCDomain
Admin Server Host : oemnode1
Admin Server HTTPS Port: 7102
Admin Server is RUNNING

Oracle Management Server Information
Managed Server Instance Name: EMGC_OMS1
Oracle Management Server Instance Host: oemnode1
WebTier is Up
Oracle Management Server is Up
JVMD Engine is Up

BI Publisher Server Information
BI Publisher Managed Server Name: BIP
BI Publisher Server is Up

BI Publisher HTTP Managed Server Port : 9701
BI Publisher HTTPS Managed Server Port : 9803
BI Publisher HTTP OHS Port : 9788
BI Publisher HTTPS OHS Port : 9851
BI Publisher is locked.
BI Publisher Server named 'BIP' running at URL: https://oemnode1:9851/xmlpserver/servlet/home
BI Publisher Server Logs: /u01/app/oracle/Product/gc_inst/user_projects/domains/GCDomain/servers/BIP/logs/
BI Publisher Log : /u01/app/oracle/Product/gc_inst/user_projects/domains/GCDomain/servers/BIP/logs/bipublisher/bipublisher.log

Stop OEM agent

[oracle@oemnode1 ~]$ emctl stop agent

Start OEM agent

[oracle@oemnode1 ~]$ emctl start agent

Check status of OEM agent

[oracle@oemnode1 ~]$ emctl status agent

The agent is overloaded [current requests: 128]

Java layer deadlock —“Dead Lock detected!!”, bounce the agent, and then everything is working fine.

SITUATION

The following alerts are received from racnode1 -“The agent is overloaded [current requests: 128]”

From: oracle
Sent: Friday, 4 August 2017 7:07 PM
Cc:
Subject: EM Event: Warning: racnode1 - Agent Unreachable (REASON = The agent is overloaded [current requests: 128]). Host is reachable.

...
..
.
Categories=Availability
Message=Agent Unreachable (REASON = The agent is overloaded [current requests: 128]). Host is reachable.
Severity=Warning
Event reported time=Aug 4, 2017 7:06:27 PM AEST
...
..
.

INVESTIGATING

1)   Check agent status

Agent is running
Agent upload is not working
Agent reload is not working
OMS heartbeat is not working

$ emctl status agent
Oracle Enterprise Manager Cloud Control 12c Release 5
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
Agent Version : 12.1.0.5.0
OMS Version : 13.2.0.0.0
Protocol Version : 12.1.0.1.0
..
.
Last Reload : 2017-08-04 11:28:59
Last successful upload : 2017-08-04 14:51:03  <--- 5 hours ago
Last attempted upload : 2017-08-04 14:51:03
..
.
Last attempted heartbeat to OMS : 2017-08-04 14:50:23
Last successful heartbeat to OMS : 2017-08-04 14:50:23
Next scheduled heartbeat to OMS : 2017-08-04 14:51:23

2) Upload agent
$ emctl upload agent
Oracle Enterprise Manager Cloud Control 12c Release 5
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
EMD upload error:The agent is overloaded [current requests: 128]
3) Reload agent
$ emctl reload agent
Oracle Enterprise Manager Cloud Control 12c Release 5
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
EMD reload error:The agent is overloaded [current requests: 128]
4) “emagent_perl.trc” file has no information updated since agent restarted
5) Check “gcagent.log”

Java layer deadlock —“Dead Lock detected!!”

2017-08-04 19:28:59,071 [43:GCThread-13] ERROR -
Dead Lock detected!!
Participating threads:Thread Info Dump:
=================
"HTTP Listener-3592 - /emd/main/ (~Task-free~ OMS.pbs@16398@omsnode=>[150183756670001])" tid=3592 WAITING
 > Accumulated wait time (msec): 1372208 (1 times)

"HTTP Listener-2141 - /emd/main/ (~Task-free~ OMS.pbs@13103@omsnode=>[150182243190001])" tid=2141 BLOCKED
 > Accumulated wait time (msec): 11036289 (76 times)
 > Accumulated blocked time (msec): 16506994 (4 times)

"oracle.dfw.impl.incident.DiagnosticsDataExtractorImpl - Incident Dump Executor (created: Fri Aug 04 14:51:06 EST 2017)" tid=3088 BLOCKED
 > Accumulated blocked time (msec): 16672145 (7 times)

"HTTP Listener-1022 - /emd/main/ (~Task-free~ OMS.pbs@16398@omsnode=>[150181021899001])" tid=1022 WAITING
 > Accumulated wait time (msec): 28746227 (37 times)
 > Accumulated blocked time (msec): 133 (12 times)

"HTTP Listener-1078 - /emd/main/ (DispatchRequests OMS.console@16398@omsnode=>[150181015881006])" tid=1078 WAITING
 > Accumulated wait time (msec): 28719225 (44 times)

=================
Thread Info Dump:
=================
"HTTP Listener-3592 - /emd/main/ (~Task-free~ OMS.pbs@16398@omsnode=>[150183756670001])" tid=3592 WAITING
 sun.misc.Unsafe.park(Native Method)
 - waiting on <0x149717ec> (a java.util.concurrent.locks.ReentrantLock$NonfairSync), which is owned by "HTTP Listener-2141 - /emd/main/ (~Task-free~ OMS.pbs@13103@omsnode=>[150182243190001])" (tid=2141)
 java.util.concurrent.locks.LockSupport.park(LockSupport.java:156)
 java.util.concurrent.locks.AbstractQueuedSynchronizer.parkAndCheckInterrupt(AbstractQueuedSynchronizer.java:811)
 java.util.concurrent.locks.AbstractQueuedSynchronizer.acquireQueued(AbstractQueuedSynchronizer.java:842)
 java.util.concurrent.locks.AbstractQueuedSynchronizer.acquire(AbstractQueuedSynchronizer.java:1178)
 java.util.concurrent.locks.ReentrantLock$NonfairSync.lock(ReentrantLock.java:186)
...
..
.

SOLUTION

1) Stop agent
$ emctl stop agent
Oracle Enterprise Manager Cloud Control 12c Release 5
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
Stopping agent ...
 stopped.
2) Start agent
$ emctl start agent
Oracle Enterprise Manager Cloud Control 12c Release 5
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
Starting agent ............................................ started.
3) Upload agent successfully
$ emctl upload agent
Oracle Enterprise Manager Cloud Control 12c Release 5
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
EMD upload completed successfully
4) Reload agent successfully
$ emctl reload agent
Oracle Enterprise Manager Cloud Control 12c Release 5
Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.
---------------------------------------------------------------
EMD reload completed successfully
5)Check agent status successfully
$ emctl status agent
...
..
Last attempted heartbeat to  OMS : 2017-08-04 19:53:31
Last successful heartbeat to OMS : 2017-08-04 19:53:31
Next scheduled heartbeat to  OMS : 2017-08-04 19:54:32

---------------------------------------------------------------
Agent is Running and Ready
