How to Fix Incomplete RDBMS DST Upgrading in 12c

It is a good practice to raise a service request for issues of DST upgrading in production environment.

There is a database upgraded from 11.2.0.4 to 12.1.0.2 by using “Complete Checklist for Upgrading to Oracle Database 12c Release 1 using DBUA (Doc ID 1516557.1)”. For some reason, the DST upgrading was not complete successfully after the upgrading checking:

Current DST state is still “Upgrade”.

SQL>SELECT PROPERTY_NAME, SUBSTR(property_value, 1, 30) value
    FROM DATABASE_PROPERTIES
    WHERE PROPERTY_NAME LIKE 'DST_%'
    ORDER BY PROPERTY_NAME;

PROPERTY_NAME			    VALUE
----------------------------------- ------------------------------
DST_PRIMARY_TT_VERSION		    18
DST_SECONDARY_TT_VERSION	    14
DST_UPGRADE_STATE		    UPGRADE

Try to end the upgrading, still got issues.

SQL>shutdown immediate
SQL>startup

SQL>alter session set "_with_subquery"=materialize;
SQL>alter session set "_simple_view_merging"=TRUE;


SQL>VAR fail number
SQL>BEGIN
DBMS_DST.END_UPGRADE(:fail);
DBMS_OUTPUT.PUT_LINE('Failures:'|| :fail);
END;
/
Number of failures: 2
BEGIN
*
ERROR at line 1:
ORA-56929: Ending an upgrade window failed
ORA-06512: at "SYS.DBMS_SYS_ERROR", line 79
ORA-06512: at "SYS.DBMS_DST", line 1289
ORA-06512: at line

SQL>SELECT * FROM sys.dst$error_table;

no rows selected

SQL>SELECT OWNER, TABLE_NAME, UPGRADE_IN_PROGRESS
      FROM ALL_TSTZ_TABLES
     where UPGRADE_IN_PROGRESS='YES';

OWNER            TABLE_NAME                    UPG
---------------- ----------------------------  ----
GSMADMIN_INTERNAL AQ$_CHANGE_LOG_QUEUE_TABLE_L YES
GSMADMIN_INTERNAL AQ$_CHANGE_LOG_QUEUE_TABLE_S YES

Start database normally and run DBMS_DST.UPGRADE_DATABASE.

SQL>set serveroutput on
SQL>VAR numfail number
SQL>BEGIN
DBMS_DST.UPGRADE_DATABASE(:numfail,
parallel => TRUE,
log_errors => TRUE,
log_errors_table => 'SYS.DST$ERROR_TABLE',
log_triggers_table => 'SYS.DST$TRIGGER_TABLE',
error_on_overlap_time => FALSE,
error_on_nonexisting_time => FALSE);
DBMS_OUTPUT.PUT_LINE('Failures:'|| :numfail);
END;
/

Table list: "GSMADMIN_INTERNAL"."AQ$_CHANGE_LOG_QUEUE_TABLE_S"
Number of failures: 0
Table list: "GSMADMIN_INTERNAL"."AQ$_CHANGE_LOG_QUEUE_TABLE_L"
Number of failures: 0
Failures:0

PL/SQL procedure successfully completed.



SQL>SELECT * FROM sys.dst$error_table;

no rows selected

End the upgrading.

SQL> VAR fail number
BEGIN
DBMS_DST.END_UPGRADE(:fail);
DBMS_OUTPUT.PUT_LINE('Failures:'|| :fail);
END;
/
An upgrade window has been successfully ended.
Failures:0

PL/SQL procedure successfully completed.

Check the successful upgrading.

SQL>SELECT PROPERTY_NAME, SUBSTR(property_value, 1, 30) value
      FROM DATABASE_PROPERTIES
     WHERE PROPERTY_NAME LIKE 'DST_%'
  ORDER BY PROPERTY_NAME;

PROPERTY_NAME             VALUE
------------------------- -------
DST_PRIMARY_TT_VERSION       18
DST_SECONDARY_TT_VERSION      0
DST_UPGRADE_STATE          NONE


SQL>SELECT * FROM v$timezone_file;

FILENAME		VERSION     CON_ID
-------------------- ---------- ----------
timezlrg_18.dat 	     18 	 0

Reference:

Updating the RDBMS DST version in 12c Release 1 (12.1.0.1 and up) using DBMS_DST (Doc ID 1509653.1)

Scripts to automatically update the RDBMS DST (timezone) version in an 11gR2 or 12cR1 database . (Doc ID 1585343.1)

How to deinstall 11gR2 Grid Infrastructure and 11gR2 RAC software after upgraded to 12c

Uninstall Old Grid Infrastructure ( GI ) Home and Oracle RAC Database Home, after they have been upgraded.

SITUATION

We have two nodes 11gR2 GI and RAC upgraded to 12c already, so we need uninstall old both 11gR2 GI and RAC Oracle Home.

SOLUTION

1)Backup OraInventory.

2)Uninstall 11gR2 Oracle RAC Home as below, OraInventory is updated on all nodes accordingly.

$export ORACLE_HOME=/u01/app/oracle/product/11.2.0/db_1
$cd cd $ORACLE_HOME/deinstall
$./deinstall -silent
$cd /u01/app/oracle/product
$rm -r 11.2.0
$cat   inventory.xml|grep 11.2.0
   <saved_with>11.2.0.2.0</saved_with>
<home loc='/u01/app/grid/11.2.0' name='Ora11g_gridinfrahome1' idx='1' type='O'>
<home crs='true' loc='/u01/app/grid/12.1.0' name='Ora12c_gridinfrahome2' idx='15' type='O'>
<home loc='/u01/app/oracle/product/12.1.0/db_1' name='OraDb12c_home1' idx='16' type='O'>
<home /='' removed='T' loc='/u01/app/oracle/product/11.2.0/db_1' name='OraDb11g_home1' idx='2' type='O'>

3) Uninstall 11gR2 Grid Home.

To deinstall 11gR2 GI OH, you will need to use :Oracle Universal Installer (OUI) FAQ( Doc ID 458893.1 ) How to detach an Oracle Home using OUI? Then after detaching the old GI home then you will need to remove the old GI home manually. Using the information in this note: How to Deinstall Old Clusterware Home Once Upgrade to Newer Version is Complete ( Doc ID 1346305.1 )

$ export ORACLE_HOME=/u01/app/grid/11.2.0
$ $ORACLE_HOME/OPatch/opatch lsinventory -all

$cd $ORACLE_HOME/oui/bin
$ ./runInstaller -silent -detachHome ORACLE_HOME="/u01/app/grid/11.2.0" ORACLE_HOME_NAME="Ora11g_gridinfrahome1"

$ cat   inventory.xml|grep 11.2.0
   <saved_with>11.2.0.2.0</saved_with>
<home crs='true' loc='/u01/app/grid/12.1.0' name='Ora12c_gridinfrahome2' idx='15' type='O'>
<home loc='/u01/app/oracle/product/12.1.0/db_1' name='OraDb12c_home1' idx='16' type='O'>
<home /='' removed='T' loc='/u01/app/oracle/product/11.2.0/db_1' name='OraDb11g_home1' idx='2' type='O'>
<home /='' removed='T' loc='/u01/app/grid/11.2.0' name='Ora11g_gridinfrahome1' idx='1' type='O'>

$ORACLE_HOME/OPatch/opatch lsinventory -all

$ crsctl status res -t

$sudo su -
# cd /u01/app/grid/
# rm -fr 11.2.0

How to Use WGET to Download Oracle Binary Software from MOS

Download Oracle software and patches in batch or command line, even in background.

SITUATION

Due to security or firewall issue, we have to download Oracle software and patches from a sever where web browser is unavailable. Here is an example how to download the patches by using wget utility.

IMPLEMENTATION

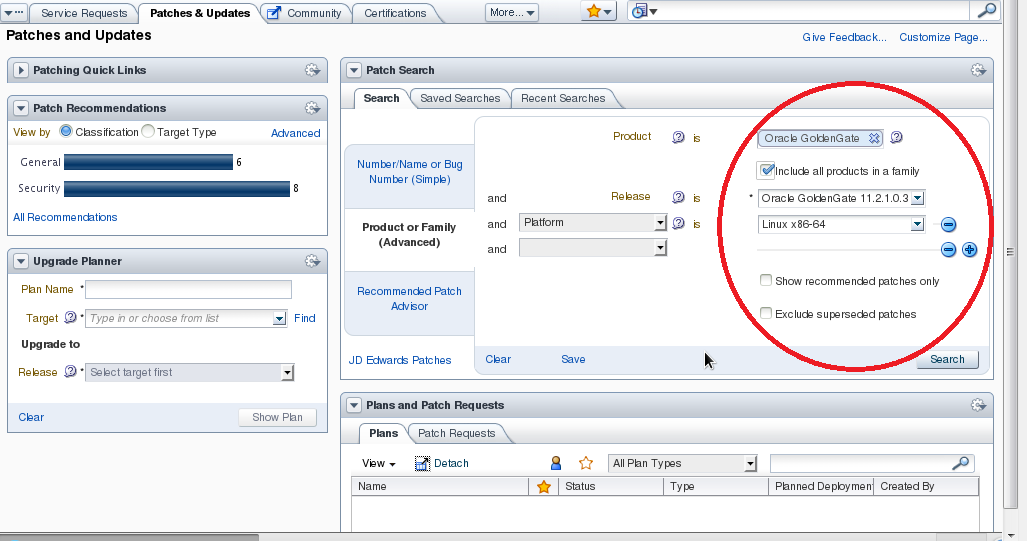

1) Search the patch you want.

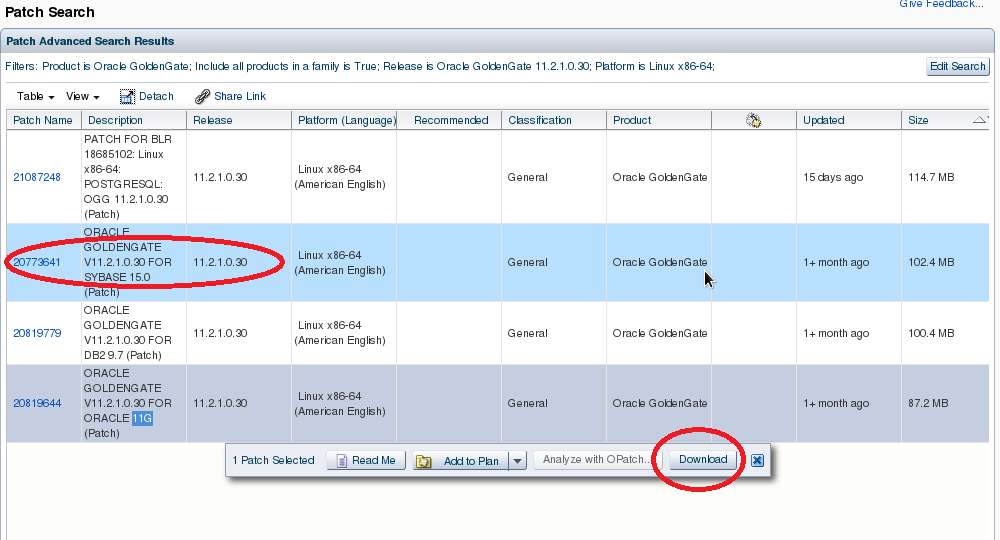

2) Select and click Download button.

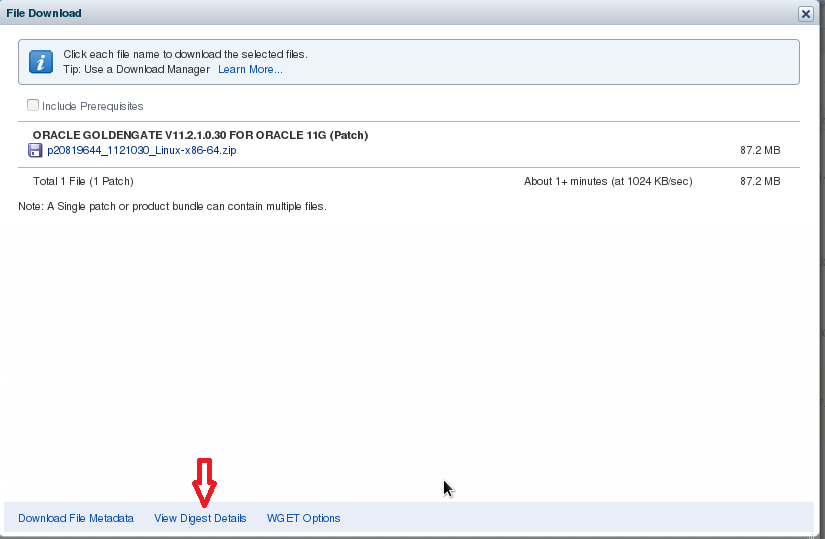

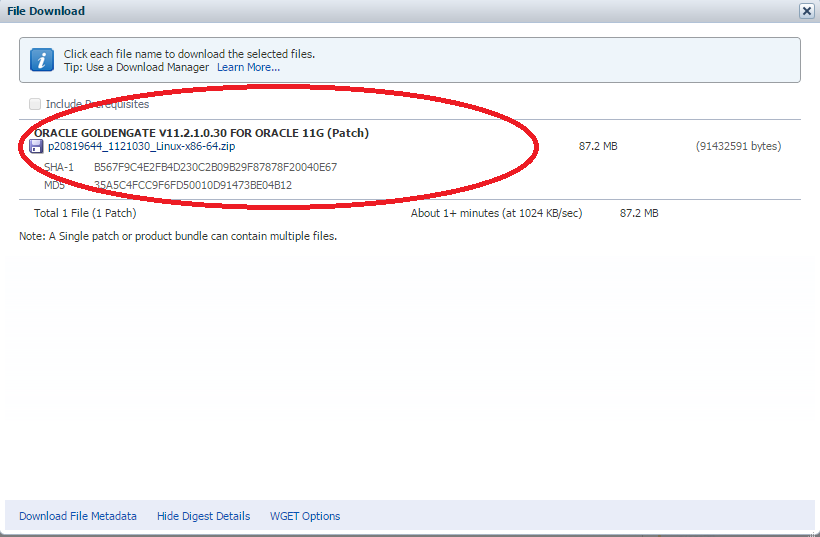

3) Click “View Digest Details“

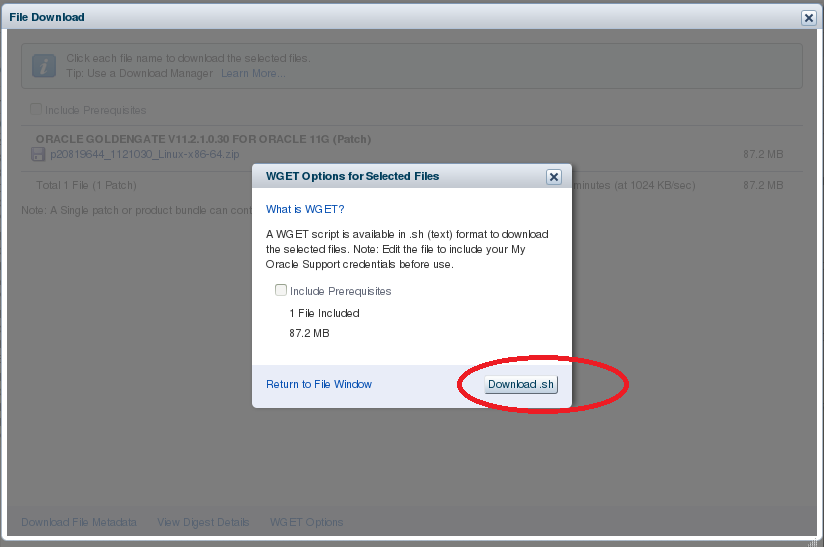

4) Click “WGET Options” and “Download.sh“, save wget.sh.

5) Edit wget.sh by specifying the variables with right values as below :

# SSO username and password
SSO_USERNAME=EXAMPLE@ORACLE.COM
SSO_PASSWORD=password

# Path to wget command
WGET="/usr/bin/wget --no-check-certificate --secure-protocol=TLSv1 "

6) Run wget,sh script.

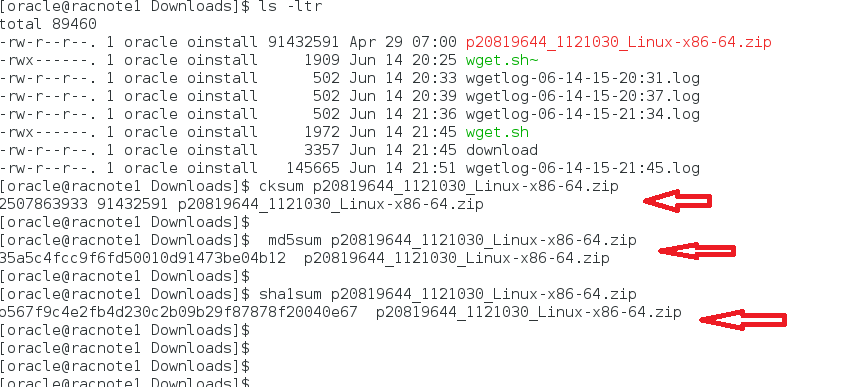

7) Double check the download files are OK by comparing the output string with the values from STEP 3.

8) wget.sh script content.

#!/bin/sh -x
#
# Generated 6/14/15 10:25 AM
# Start of user configurable variables
#
LANG=C
export LANG
# SSO username and password
SSO_USERNAME=EXAMPLE@ORACLE.COM
SSO_PASSWORD=password
# Path to wget command
WGET="/usr/bin/wget --no-check-certificate --secure-protocol=TLSv1 "
# Location of cookie file
COOKIE_FILE=/tmp/$.cookies
# Log directory and file
LOGDIR=.
LOGFILE=$LOGDIR/wgetlog-`date +%m-%d-%y-%H:%M`.log
# Output directory and file
OUTPUT_DIR=.
#
# End of user configurable variable
#
if [ "$SSO_PASSWORD " = " " ]
then
 echo "Please edit script and set SSO_PASSWORD"
 exit
fi
# Contact updates site so that we can get SSO Params for logging in
SSO_RESPONSE=`$WGET --user-agent="Mozilla/5.0" https://updates.oracle.com/Orion/Services/download 2>&1|grep Location`
# Extract request parameters for SSO
SSO_TOKEN=`echo $SSO_RESPONSE| cut -d '=' -f 2|cut -d ' ' -f 1`
SSO_SERVER=`echo $SSO_RESPONSE| cut -d ' ' -f 2|cut -d 'p' -f 1,2`
SSO_AUTH_URL=sso/auth
AUTH_DATA="ssousername=$SSO_USERNAME&password=$SSO_PASSWORD&site2pstoretoken=$SSO_TOKEN"
# The following command to authenticate uses HTTPS. This will work only if the wget in the environment
# where this script will be executed was compiled with OpenSSL. Remove the --secure-protocol option
# if wget was not compiled with OpenSSL
# Depending on the preference, the other options are --secure-protocol= auto|SSLv2|SSLv3|TLSv1
$WGET --user-agent="Mozilla/5.0" --secure-protocol=TLSv1 --post-data $AUTH_DATA --save-cookies=$COOKIE_FILE --keep-session-cookies $SSO_SERVER$SSO_AUTH_URL -O sso.out >> $LOGFILE 2>&1
rm -f sso.out
$WGET --user-agent="Mozilla/5.0" --load-cookies=$COOKIE_FILE --save-cookies=$COOKIE_FILE --keep-session-cookies "https://updates.oracle.com/Orion/Services/download/p20819644_1121030_Linux-x86-64.zip?aru=18865551&patch_file=p20819644_1121030_Linux-x86-64.zip" -O $OUTPUT_DIR/p20819644_1121030_Linux-x86-64.zip >> $LOGFILE 2>&1
# Cleanup
rm -f $COOKIE_FILE

Apply Database Patch Set Update 12.1.0.2.2 (Includes CPUJan2015) and Oracle JavaVM Component 12.1.0.2.2 Database PSU (Jan2015) onto CDB Database

Oracle suggests to apply the latest PSU as soon as possible.

1) Download and put in place opatch 12.1.0.1.6 as README required.

2)Download patch “p20132434_121020_Linux-x86-64.zip” which includes both database and JVM 12.1.0.2.2 PSU.

3)unzip p20132434_121020_Linux-x86-64.zip.

4) List files.

[oracle@racnode1 20132434]$ ls -ltr
drwxrwx---. 1 root vboxsf 0 Jan 21 01:09 19769480
-rwxrwx---. 1 root vboxsf 25 Jan 21 01:09 README.txt
drwxrwx---. 1 root vboxsf 0 Jan 21 01:09 19877336
-rwxrwx---. 1 root vboxsf 17979 Jan 21 01:18 README.htm

5) Pre-check.

$cd 19769480
$opatch prereq CheckConflictAgainstOHWithDetail -ph ./

 Oracle Interim Patch Installer version 12.1.0.1.6
 Copyright (c) 2015, Oracle Corporation. All rights reserved.
PREREQ session
Oracle Home : /u01/app/oracle/product/12.1.0/dbhome_1
Central Inventory : /u01/app/oraInventory
 from : /u01/app/oracle/product/12.1.0/dbhome_1/oraInst.loc
OPatch version : 12.1.0.1.6
OUI version : 12.1.0.2.0
Log file location : /u01/app/oracle/product/12.1.0/dbhome_1/cfgtoollogs/opatch/opatch2015-03-16_21-05-16PM_1.log
Invoking prereq "checkconflictagainstohwithdetail"
Prereq "checkConflictAgainstOHWithDetail" passed.
OPatch succeeded.

6) Opatch apply.

[oracle@racnote1 19769480]$ opatch apply
Oracle Interim Patch Installer version 12.1.0.1.6
Copyright (c) 2015, Oracle Corporation. All rights reserved.
Oracle Home : /u01/app/oracle/product/12.1.0/dbhome_1
Central Inventory : /u01/app/oraInventory
from : /u01/app/oracle/product/12.1.0/dbhome_1/oraInst.loc
OPatch version : 12.1.0.1.6
OUI version : 12.1.0.2.0
Log file location : /u01/app/oracle/product/12.1.0/dbhome_1/cfgtollogs/opatch/19769480_Mar_16_2015_21_09_50/apply2015-03-16_21-09-50PM_1.log
Applying interim patch '19769480' to OH '/u01/app/oracle/product/12.1.0/dbhome_1'
Verifying environment and performing prerequisite checks...
All checks passed.
Provide your email address to be informed of security issues, insall and initiate Oracle Configuration Manager. Easier for you if you use your My Oracle Support Email address/User Name.
Visit http://www.oracle.com/support/policies.html for details.
Email address/User Name:
You have not provided an email address for notification of security issues.
Do you wish to remain uninformed of security issues ([Y]es, [N]o) [N]: Y
Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = '/u01/app/oracle/product/12.1.0/dbhome_1')
Is the local system ready for patching? [y|n]y
User Responded with: Y
Backing up files...
Patching component oracle.rdbms.deconfig, 12.1.0.2.0...
Patching component oracle.xdk, 12.1.0.2.0...
Patching component oracle.tfa, 12.1.0.2.0...
Patching component oracle.rdbms.util, 12.1.0.2.0...
Patching component oracle.rdbms, 12.1.0.2.0...
Patching component oracle.rdbms.dbscripts, 12.1.0.2.0...
Patching component oracle.xdk.parser.java, 12.1.0.2.0...
Patching component oracle.oraolap, 12.1.0.2.0...
Patching component oracle.xdk.rsf, 12.1.0.2.0...
Patching component oracle.rdbms.rsf, 12.1.0.2.0...
Patching component oracle.rdbms.rman, 12.1.0.2.0...
Patching component oracle.ldap.rsf, 12.1.0.2.0...
Patching component oracle.ldap.rsf.ic, 12.1.0.2.0...
Verifying the update...
Patch 19769480 successfully applied
Log file location: /u01/app/oracle/product/12.1.0/dbhome_1/cfgtoollogs/opatch/19769480_Mar_16_2015_21_09_50/apply2015-03-16_21-09-50PM_1.log

OPatch succeeded.

7) load modified SQL files into the database.

$sqlplus /nolog
SQL>connect / as sysdba
SQL> startup
$cd $ORACLE_HOME/OPatch
SQL> quit
SQL> alter pluggable database all open;

SQL> SELECT NAME,OPEN_MODE FROM V$PDBS;

NAME        OPEN_MODE
----------- ----------
PDB$SEED    READ ONLY
PDB2        READ WRITE
PDB2_2      READ WRITE
PDB_ORCL2   READ WRITE
PDB1_1      READ WRITE
PDB_SAMLES  READ WRITE

6 rows selected.

[oracle@racnote1 OPatch]$ ./datapatch -verbose
SQL Patching tool version 12.2.0.0.0 on Mon Mar 16 22:01:39 2015
Copyright (c) 2014, Oracle. All rights reserved.

Connecting to database...OK
Note: Datapatch will only apply or rollback SQL fixes for PDBs
 that are in an open state, no patches will be applied to closed PDBs.
 Please refer to Note: Datapatch: Database 12c Post Patch SQL Automation
 (Doc ID 1585822.1)
catcon: ALL catcon-related output will be written to /tmp/sqlpatch_catcon__catcon_8643.lst
catcon: See /tmp/sqlpatch_catcon_*.log files for output generated by scripts
catcon: See /tmp/sqlpatch_catcon__*.lst files for spool files, if any
Bootstrapping registry and package to current versions...done
Determining current state...done

Current state of SQL patches:
Bundle series PSU:
 ID 2 in the binary registry and not installed in any PDB

Adding patches to installation queue and performing prereq checks...
Installation queue:
 For the following PDBs: CDB$ROOT PDB$SEED PDB2 PDB2_2 PDB_ORCL2 PDB1_1 PDB_SAMLES
 Nothing to roll back
 The following patches will be applied:
 19769480 (Database Patch Set Update : 12.1.0.2.2 (19769480))

Installing patches...
Patch installation complete. Total patches installed: 7

Validating logfiles...
Patch 19769480 apply (pdb CDB$ROOT): SUCCESS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19769480/18350083/19769480_apply_CDB2_CDBROOT_2015Mar16_22_02_28.log (no errors)
Patch 19769480 apply (pdb PDB$SEED): SUCCESS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19769480/18350083/19769480_apply_CDB2_PDBSEED_2015Mar16_22_02_38.log (no errors)
Patch 19769480 apply (pdb PDB2): SUCCESS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19769480/18350083/19769480_apply_CDB2_PDB2_2015Mar16_22_02_38.log (no errors)
Patch 19769480 apply (pdb PDB2_2): SUCCESS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19769480/18350083/19769480_apply_CDB2_PDB2_2_2015Mar16_22_02_38.log (no errors)
Patch 19769480 apply (pdb PDB_ORCL2): SUCCESS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19769480/18350083/19769480_apply_CDB2_PDB_ORCL2_2015Mar16_22_02_39.log (no errors)
Patch 19769480 apply (pdb PDB1_1): SUCCESS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19769480/18350083/19769480_apply_CDB2_PDB1_1_2015Mar16_22_02_52.log (no errors)
Patch 19769480 apply (pdb PDB_SAMLES): SUCCESS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19769480/18350083/19769480_apply_CDB2_PDB_SAMLES_2015Mar16_22_02_51.log (no errors)
SQL Patching tool complete on Mon Mar 16 22:03:00 2015
[oracle@racnote1 OPatch]$


SQL> select VERSION,ACTION,STATUS,ACTION_TIME
       from dba_registry_sqlpatch;

VERSION   ACTION  STATUS   ACTION_TIME
--------- ------- -------- -----------------------------
12.1.0.2  APPLY   SUCCESS  16-MAR-15 10.02.57.755324 PM

Apply Oracle JavaVM Component 12.1.0.2.2 Database PSU (Jan2015)

1)Pre-check.

[oracle@racnode1 19877336]$ opatch prereq CheckConflictAgainstOHWithDetail -ph ./
Oracle Interim Patch Installer version 12.1.0.1.6
Copyright (c) 2015, Oracle Corporation. All rights reserved.

PREREQ session

Oracle Home : /u01/app/oracle/product/12.1.0/dbhome_1
Central Inventory : /u01/app/oraInventory
from : /u01/app/oracle/product/12.1.0/dbhome_1/oraInst.loc
OPatch version : 12.1.0.1.6
OUI version : 12.1.0.2.0
Log file location : /u01/app/oracle/product/12.1.0/dbhome_1/cfgtoollogs/opatch/opatch2015-03-16_22-08-46PM_1.log

Invoking prereq "checkconflictagainstohwithdetail"

Prereq "checkConflictAgainstOHWithDetail" passed.

OPatch succeeded.

2) opatch apply.

3) load modified SQL files into the database.

$sqlplus /nolog
SQL>connect / as sysdba
SQL> startup
$cd $ORACLE_HOME/OPatch
SQL> quit

SQL> alter pluggable database all open;
SQL> SELECT NAME,OPEN_MODE FROM V$PDBS;
NAME         OPEN_MODE
------------ ----------
PDB$SEED     READ ONLY
PDB2         READ WRITE
PDB2_2       READ WRITE
PDB_ORCL2    READ WRITE
PDB1_1       READ WRITE
PDB_SAMLES   READ WRITE

6 rows selected.

[oracle@racnote1 OPatch]$ ./datapatch -verbose

-----------------------------------------------------
There is an error for PDB2 pluggable databbase
-----------------------------------------------------

Patch 19877336 apply (pdb PDB2): WITH ERRORS
 logfile: /u01/app/oracle/cfgtoollogs/sqlpatch/19877336/18313828/19877336_apply_CDB2_PDB2_2015Mar16_22_29_39.log (errors)
 Error at line 554: ORA-01652: unable to extend temp segment by 128 in tablespace TEMP_PDB2
 Error at line 555: ORA-06512: at line 10
----------------------------------------------------
----------------------------------------------------
To fix:
1) make tempfile autoextend on
2) rerun datapatch

SQL> alter session set container=pdb2;
Session altered.

SQL> show con_name
CON_NAME
------------
PDB2

SQL> select PATCH_ID,ACTION,STATUS,ACTION_TIME,DESCRIPTION
       from dba_registry_sqlpatch ;

PATCH_ID   ACTION   STATUS    ACTION_TIME                  DESCRIPTION
---------- -------- --------- ---------------------------  --------------
 19769480  APPLY    SUCCESS   16-MAR-15 10.02.58.791011 PM Database Patch Set Update : 12.1.0.2.2 (19769480)
 19877336  APPLY  WITH ERRORS 16-MAR-15 10.42.38.915032 PM Database PSU 12.1.0.2.2, Oracle JavaVM Component (
 19877336  APPLY     SUCCESS  16-MAR-15 11.34.24.408659 PM Database PSU 12.1.0.2.2, Oracle JavaVM Component (


SQL> alter session set container=cdb$root;
SQL> select PATCH_ID,ACTION,STATUS,ACTION_TIME,DESCRIPTION
       from dba_registry_sqlpatch ;

PATCH_ID   ACTION   STATUS  ACTION_TIME                  DESCRIPTION
---------- -------- ------- ---------------------------  -------------

 19769480  APPLY   SUCCESS 16-MAR-15 10.02.57.755324 PM  Database Patch Set Update : 12.1.0.2.2 (19769480)
 19877336  APPLY   SUCCESS 16-MAR-15 10.42.37.649060 PM  Database PSU 12.1.0.2.2, Oracle JavaVM Component (

Apply OCT2014 DB PSU OJVM PSU and JDBC Patch Onto 11.2.0.4 ORACLE_HOME

Always apply the latest patches as soon as possible as Oracle recommended.

There is a requirement to apply Oct 2014 PSU onto 11.2.0.4 ORACLE_HOME.

From Oct 2014 onwards, Oracle JavaVM Component Database PSU is released as part of the Critical Patch Update program.

It consists of two separate patches:

One for JDBC clients – applicable to Client, Instant Client, Database and Grid ORACLE_HOMES. This is referred to as “JDBC Patch” .
One for Oracle JavaVM component within the Oracle Database – applicable to database ORACLE_HOMEs only. This is referred to as “OJVM PSU” .

The table below shows which Oracle JavaVM Component patches are required in the various ORACLE_HOMEs.

Version	Type of Home	October 2014	January 2015
12.1.0.2	Database Home	OJVM PSU (Oct 2014)(or Mitigation Patch)	OJVM PSU (Jan 2015)(or Mitigation Patch)
Grid Home	None	None
Client / Instant Client Home	None	None
12.1.0.1, 11.2.0.4, 11.2.0.3, 11.1.0.7	Database Home	OJVM PSU (Oct 2014) and JDBC Patch (Oct 2014)(or Mitigation Patch and JDBC Patch)	OJVM PSU (Jan 2015) [includes JDBC fixes](or Mitigation Patch and JDBC Patch)
Grid Home	JDBC Patch (Oct 2014)	JDBC Patch (Oct 2014)
Client / Instant Client Home	JDBC Patch (Oct 2014)	JDBC Patch (Oct 2014)
Other Versions	Database Home	Mitigation Patch	Mitigation Patch

OJVM PSU

packaged separately from the Database PSU (or equivalent) as they cannot be installed in a RAC Rolling manner, nor in Standby First manner.
Oracle has also released “Combo” patches that bundle the OJVM PSU in the same ZIP file as DB PSU and/or GI PSU for ease of download. The OJVM component in these “Combo” patches is in a separate subdirectory with its own install steps still required. October 2014 “Combo” patches do not include the JDBC Patch.
are applicable to all database installations regardless of which patching model is used (DB PSU, GI PSU, Security Patch Update (SPU), Windows Bundle Patch or Database Patch for Exadata)
require the database home to be patched to at least October 2014 DB PSU (or equivalent)
include binary changes to be applied to each Database ORACLE_HOME, and “post install” steps to be execute on each database running from the ORACLE_HOME
from January 2015 onwards: include the JDBC fixes
For situations where the latest OJVM PSU cannot be installed immediately there is a “Mitigation Patch” that can be used.

MITIGATION PATCH

For situations where the latest OJVM PSU cannot be installed immediately there is a “Mitigation Patch” that can be used. The “Mitigation Patch” is an interim solution to protect against all currently known (Jan 2015) Oracle JavaVM security vulnerabilities in the database until such time as the OJVM PSU can be installed. It can also be used to protect database versions no longer covered by error correction support.

is applicable only to database homes, not client nor Grid homes
is only applicable to databases that have JavaVM installed
has no dependency on the DB PSU (or equivalent) level
can be installed in a RAC Rolling manner
is a SQL only patch that needs to be installed and activated in each database, hence it can be installed standby first but it requires SQL steps to be executed to be effective, which cannot be done on a read only standby
affects use of Java and Java development in the database
has been reviewed for January 2015 and provides mitigation against all currently known OJVM vulnerabilities
can be downloaded here: Patch:19721304

Applying the Mitigation Patch

1. Download and apply the relevant version of Patch:19721304 to each database ORACLE_HOME
2. Execute the patch post install steps against all databases running from each ORACLE_HOME. See the README supplied with the patch for post install steps relevant to the database version.
3. Check the patch logs for any errors and correct as required
4. Run the following step as a SYSDBA user to DISABLE Java development in the database:

SQL> exec dbms_java_dev.disable

Temporarily Enabling Creation/Update of Stored Java Objects

If you need to allow the creation/update of stored Java objects, including application of patches that affect stored Java or the Oracle JavaVM:

Connect to the database as a SYSDBA user

SQL> exec dbms_java_dev.enable;

Perform the steps required to create or replace Java objects, apply Java related patches.

SQL> exec dbms_java_dev.disable;

Be sure to end the steps with the call to “dbms_java_dev.disable” in order to protect the database.

Applying an “Oracle JavaVM Component Database PSU” Patch with the Mitigation Patch Already Installed

You must “enable” Java development prior to installing the OJVM PSU patch.

Disconnect users and prevent user access to the databases running from the ORACLE_HOME to be patched

“exec dbms_java_dev.enable;” in each database

Shutdown the databases

Follow the full steps to apply the OJVM PSU patch, including running post install steps against each database

You do not need to “disable” Java development after patching with the latest OJVM PSU patch, unless you wish to do so.

JDBC PATCH

JDBC patch is separately from the OJVM PSU and Database PSU (or equivalent) for ease of deployment to client environments
are applicable to Client, Instant Client and Grid ORACLE_HOMES The JDBC fixes are also applicable to the Database home regardless of whether Oracle JavaVM is used in a database or not:

For October 2014 the JDBC Patch should also be installed in the Database home.
For January 2015 the OJVM PSU includes the JDBC fixes and so the JDBC patch does not need to be installed in the Database home unless OJVM PSU is not being installed

are applicable to all installations regardless of which patching model is used (DB PSU, GI PSU, Security Patch Update (SPU), Windows Bundle Patch or Database Patch for Exadata)
have no dependency on OJVM PSU nor Database PSU (or equivalent) patch level
can be installed in database server homes in a RAC Rolling manner
do not require the database and listeners to be shutdown for patching in non-RAC environments
do not require any post install steps be executed against individual databases

APPLY PATCHES

The Oct 2014 PSU patches include:

1) Patch 19121551 -- Database Patch Set Update 11.2.0.4.4( Includes CPUOCT2014)
2) Patch 19282021 - Oracle JavaVM Component 11.2.0.4.1 Database PSU (Oct2014)
3) Patch 19852360: ORACLE JAVAVM COMPONENT 11.2.0.4.1 DATABASE PSU - GENERIC JDBC PATCH (OCT2014)

Shutdown databases and services on all nodes
Apply DB PSU Patch 19121551, but do NOT run DB PSU post install steps
Apply OJVM PSU Patch 19282021.
October 2014 only for DB versions below 12.1.0.2: Apply the JDBC Patch 19852360
Run post install steps on all DBs in the patched home:
- For 11.2.0.3 and 11.2.0.4 run the OJVM PSU post install steps followed by the DB PSU post install steps.
- For 11.1.0.7 run the OJVM PSU post install steps, then shutdown/restart the database before following the DB PSU (or equivalent) post install steps. [see note-4 below]
Re-start any stopped databases / services running from this ORACLE_HOME.

REFERENCE:

Oracle Recommended Patches — “Oracle JavaVM Component Database PSU” (OJVM PSU) Patches (Doc ID 1929745.1)
